| betaling Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| vervoer: | Ocean,Land,Express |
| Haven: | Tianjin,Qingdao,Shanghai |
Model: Q235 Q345B
Plaats Van Herkomst: China
Materiaal: Q235B, Q235, Q345, Q345B, SS400
Productieproces: Warm gewalst, Gelast
Standaard-: ASTM
Tolerantie: ± 1%
Verwerkingsservice: Buigen, Lassen, Decoiling, Ponsen, Snijden
Web Height: 100--900mm, or as required
Flange Width: 50-400mm, or as required
Web Thickness: 5-30mm, or as required
Flange Thickness: 5-40mm, or as required
Length: 1m-12m, or other lengths required
| Verkoopeenheden | : | Ton |
| Pakkettype | : | Standaard mariene verpakkingen, of zoals vereist door de klant |
| Afbeeldingsvoorbeeld | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Product Introductie

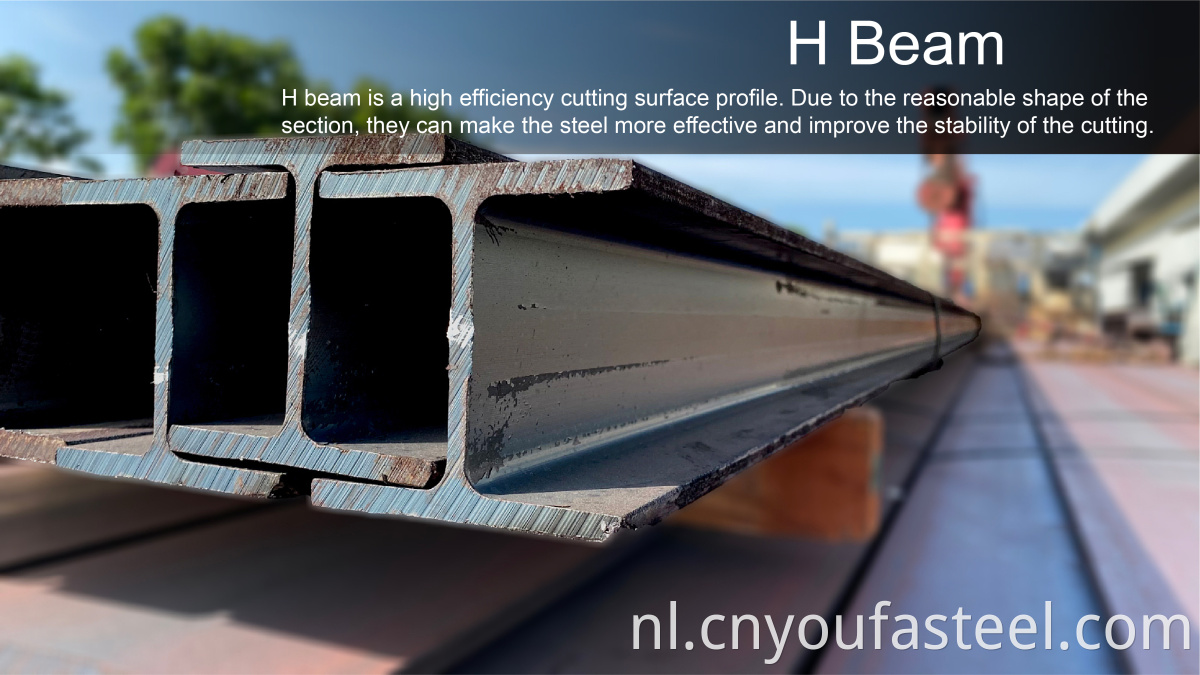

H- bundelsectie is een soort economisch constructiestaal, de vorm is van economisch en redelijk ontwerp.

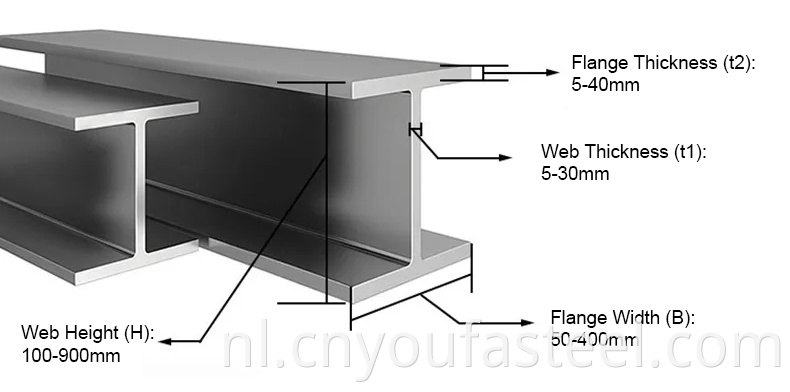

H-bundelgrootte wordt altijd getoond als webhoogte*flensbreedte*Webdikte*Flensdikte; H Beam heeft het volgende goede punt.
· Goede prestaties van mechanica.
· Rolsectie op elk verlengpunt is relatief uniform.
· Lichtgewicht, metaal bespaard door ongeveer 30-40% van de hele structuur
· Gecombineerd in componenten, kan het lassen besparen, een meeslepend werk van 25%besparen.
· Kleine interne stress.
Omdat het een goede mechanische eigenschap is, wordt het veel gebruikt voor een groot gebouw (zoals fabriek, hoog gebouw enz ... evenals brug, schip, transportmachines, basisstructuurbeugel, basisstapel, enzovoort.
Productspecificatie
|
Product Name |
Hot Rolled H Beam / H Shaped Steel / H Channel Steel / H Section Steel |
|
Standard |
GB/T 11263, EN 10034, EN 10025, JIS G3101, ASTM A36, ASTM A572, ASTM A992 |
|
Shape |
H Channel |
|
Technique |
Hot Rolled/ Welded |
|
Materials |
Q235B, Q345B, S235JR, S235J0, C, S355JR, S355J0, S355J2, S355NL, SS400, ASTM A36, A572, A992, G300, G350 etc. |
|
Standard Size Type |
HW, HM, HN; HEA120-HEA450, HEB120-HEB400, HEM100-HEM450 |
|
Web Height |
100--900mm, or as required |
|
Flange Width |
50-400mm, or as required |
|
Web Thickness |
5-30mm, or as required |
|
Flange Thickness |
5-40mm, or as required |
|
Length |
1m-12m, or other lengths required |
|
Surface Treatment |
Hot Dip Galvanized, Painting or Black. |
|
Custom services |
Cutting, Punching, Drilling, Bending, Welding |
|
Packing |
By bundles with steel strips or as customer request |
|
Delivery Time |
15 days after receive advance payment or L/C |
|
Application |
Mechanical&manufacture, Steel structure, Shipbuilding, Bridging, Automobile chassis. |
Chinese standaardmaat:
a.) HOET ROARD H -GEAM HW HM HN
b.) Lasted h- bea m
|
Type |
Ratio (H:B) |
Size (H*B) (mm) |
Web Thickness (mm) |
Flange Thickness (mm) |
Length (m) |
Weight (kg/m) |
Main Applications |
|
HW |
1:1 |
100*100-400*400 |
6-21 |
8-21 |
5.8-12 |
17.2-284 |
Column |
|
HM |
1.33~1.75:1 |
150*100-600*300 |
6-14 |
9-23 |
5.8-12 |
21.4-175 |
Frame Beam |
|
HN |
>2:1 |
150*75-900*300 |
5-16 |
7-28 |
5.8-12 |
14.3-243 |
Steel Beam |
|
H Beam Specification |
|||||
|
Size |
Theoretical weight (kg/m) |
Size |
Theoretical weight (kg/m) |
Size |
Theoretical weight (kg/m) |
|
100*50*5*7 |
9.54 |
250*255*14*14 |
82.2 |
400*400*13*21 |
172 |
|
100*100*6*8 |
17.2 |
294*200*8*12 |
57.3 |
400*408*21*21 |
197 |
|
125*60*6*8 |
13.3 |
300*150*6.5*9 |
37.3 |
414*405*18*28 |
233 |
|
125*125*6.5*9 |
23.8 |
294*302*12*12 |
85 |
440*300*11*18 |
124 |
|
148*100*6*9 |
21.4 |
300*300*10*15 |
94.5 |
446*199*7*11 |
66.7 |
|
150*75*5*7 |
14.3 |
300*305*15*15 |
106 |
450*200*9*14 |
76.5 |
|
150*150*7*10 |
31.9 |
338*351*13*13 |
106 |
482*300*11*15 |
115 |
|
175*90*5*8 |
18.2 |
340*250*9*14 |
79.7 |
488*300*11*18 |
129 |
|
175*175*7.5*11 |
40.3 |
344*354*16*16 |
131 |
496*199*9*14 |
79.5 |
|
194*150*6*9 |
31.2 |
346*174*6*9 |
41.8 |
500*200*10*16 |
89.6 |
|
198*99*4.5*7 |
18.5 |
350*175*7*11 |
50 |
582*300*12*17 |
137 |
|
200*100*5.5*8 |
21.7 |
344*348*10*16 |
115 |
588*300*12*20 |
151 |
|
200*200*8*12 |
50.5 |
350*350*12*19 |
137 |
596*199*10*15 |
95.1 |
|
200*204*12*12 |
72.28 |
388*402*15*15 |
141 |
600*200*11*17 |
106 |
|
244*175*7*11 |
44.1 |
390*300*10*16 |
107 |
700*300*13*24 |
185 |
|
244*252*11*11 |
64.4 |
394*398*11*18 |
147 |
792*300*14*22 |
191 |
|
248*124*5*8 |
25.8 |
400*150*8*13 |
55.8 |
800*300*14*26 |
210 |
|
250*125*6*9 |
29.7 |
396*199*7*11 |
56.7 |
900*300*16*28 |
243 |
|
250*250*9*14 |
72.4 |
400*200*8*13 |
66 |
|
|

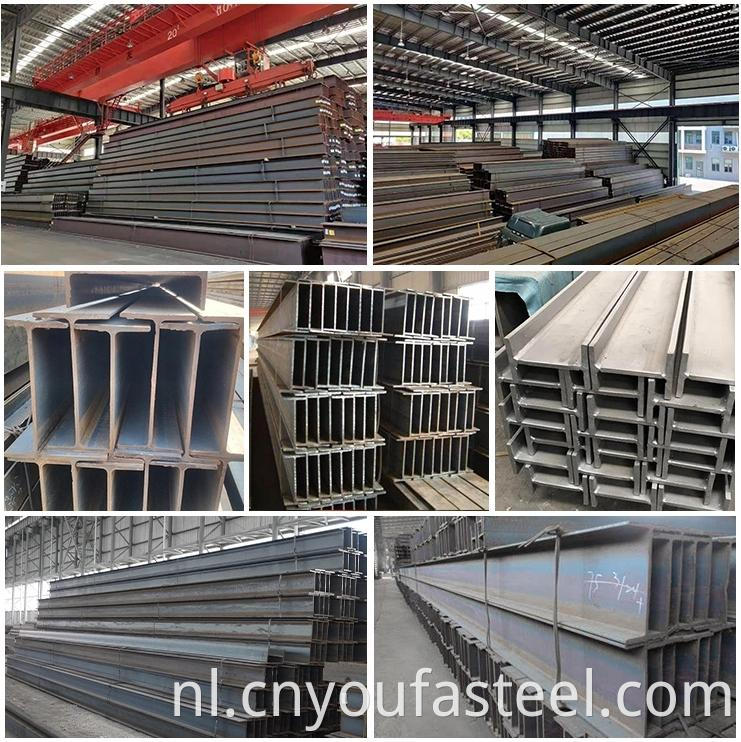

Productweergave
We kunnen verschillende maten, diktes, vrouwen en materialen produceren volgens uw vereisten

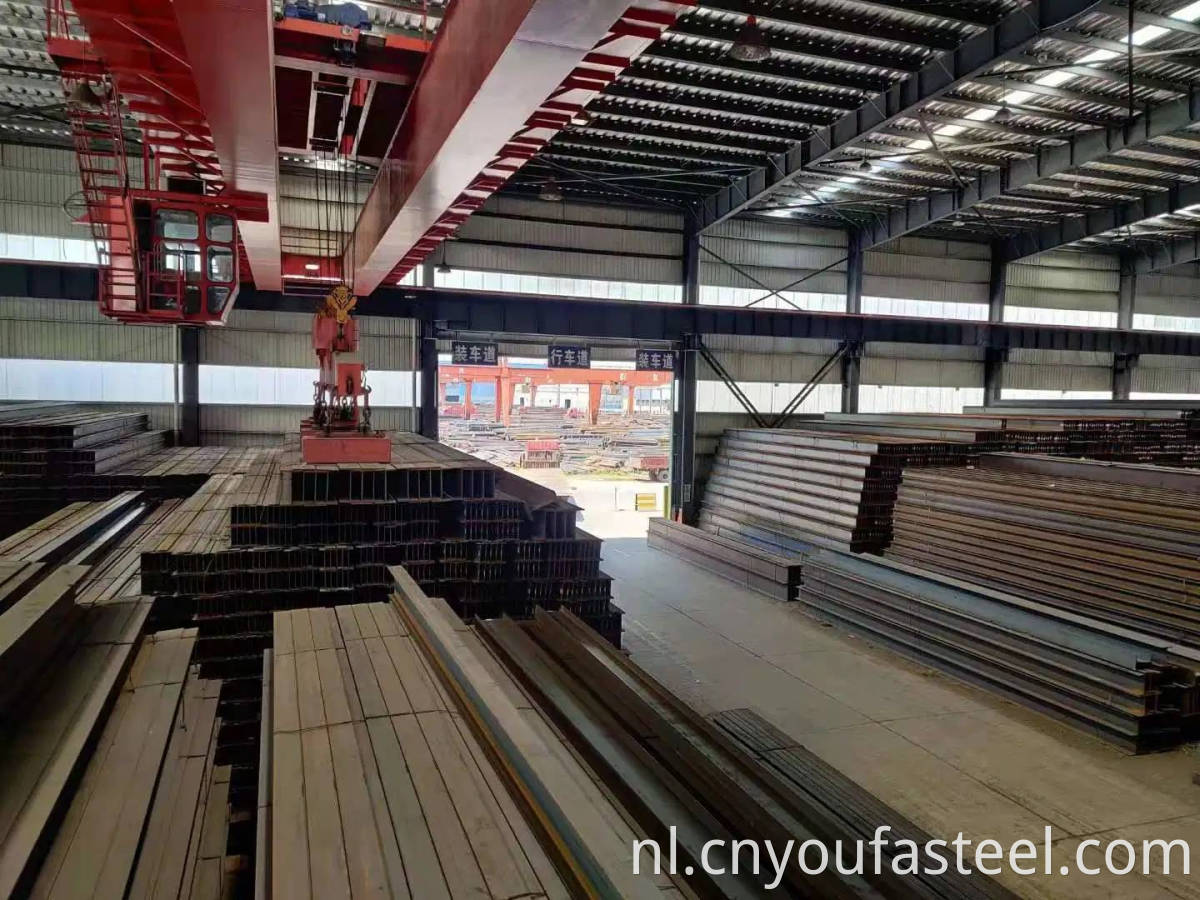

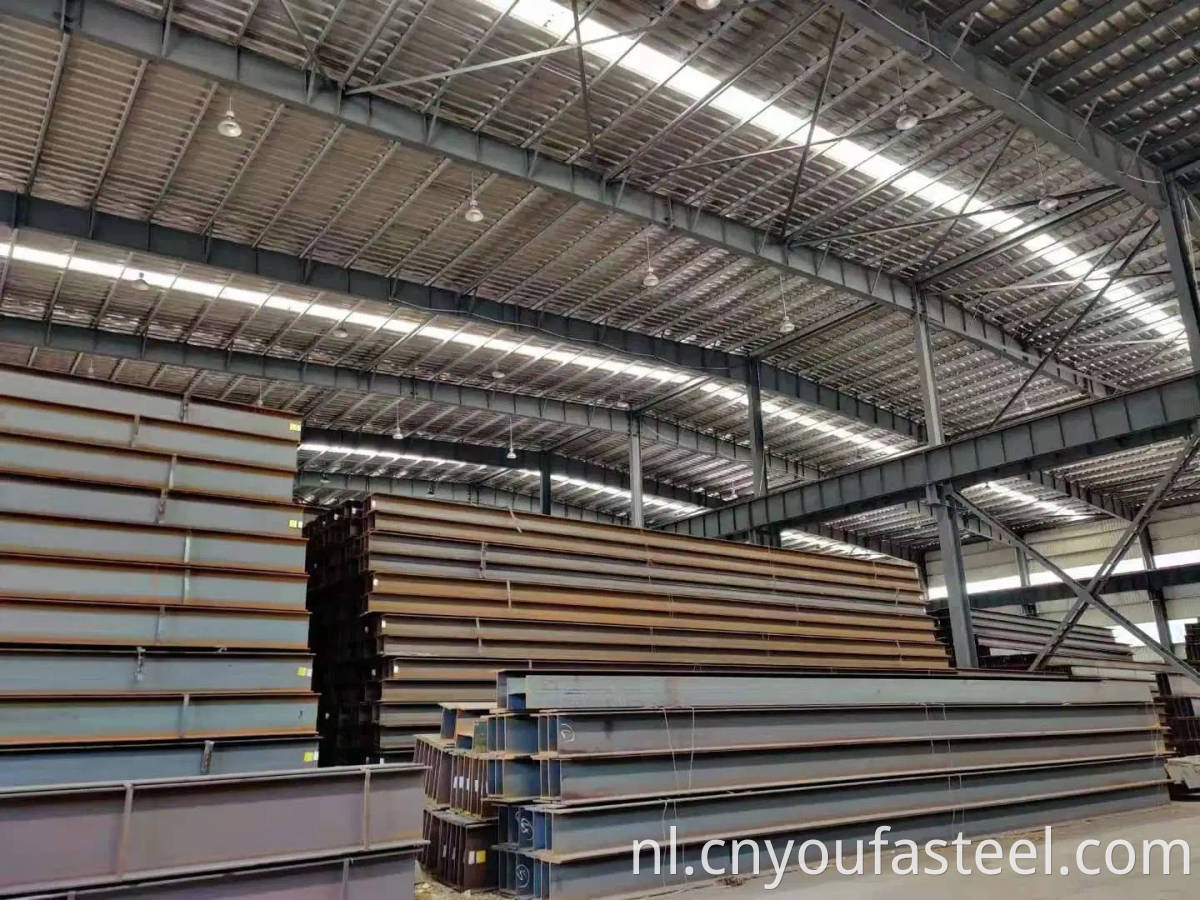

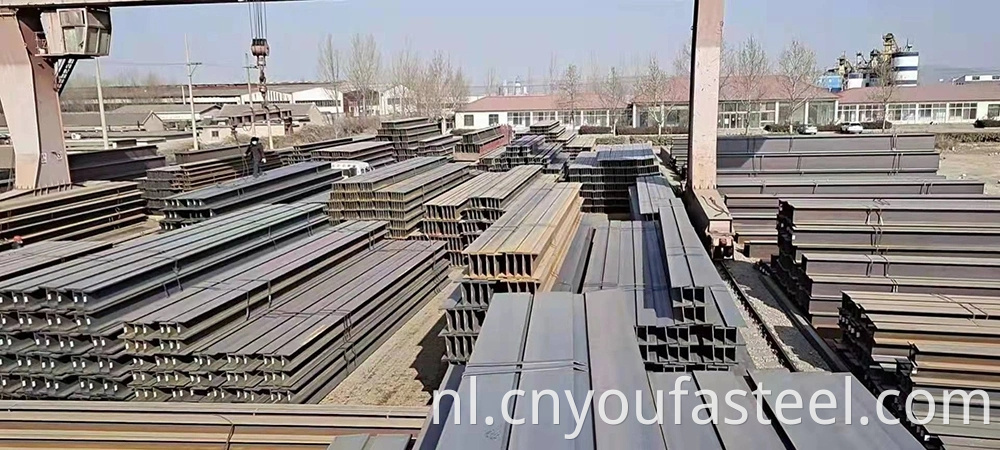

Onze fabriek
